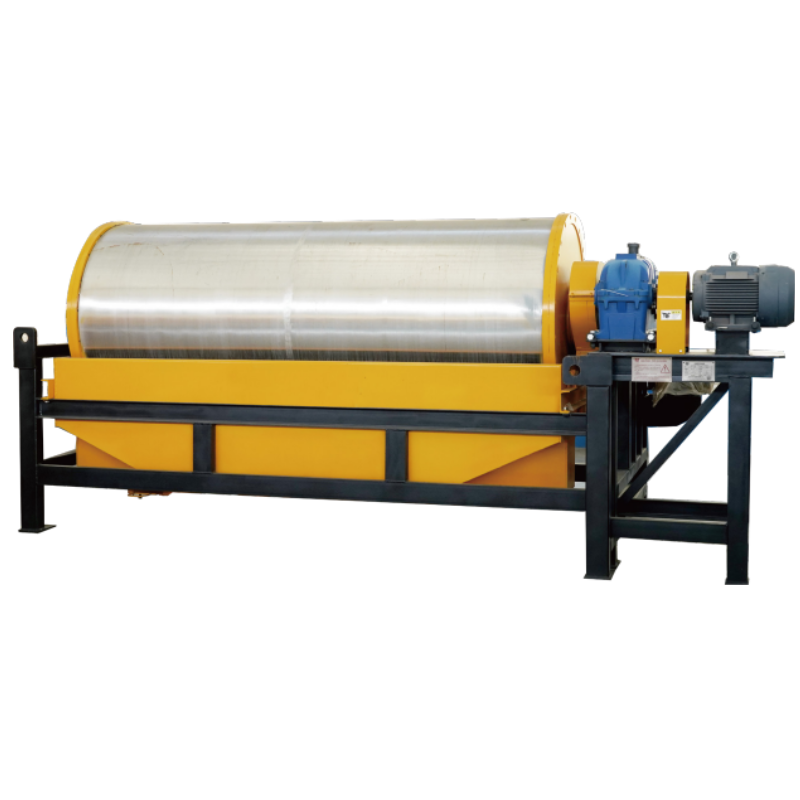

Non-Metallic Iron Removal Specialized Magnetic Separator

China non metallic iron removal magnetic separator for sale, Minjie machine manufacturers & suppliers supply non metallic iron removal magnetic separator at factory wholesale price,get a quote now!

Send Email

Product details

The weak magnetic ﬁeld separates the strong magnetic minerals of ﬁne particles. Or remove strong magnetic impurities mixed in non-magnetic minerals. Dedicated to the non-metallic mining industry.

1. According to the selection process and the diﬀerent particle size of the selection, there are two kinds of counter-current and semi-counter-current tanks to choose from. Computer optimization design, reasonable magnetic circuit, large magnetic penetration depth, cross or ﬂip magnetic ﬁeld arrangement, more conducive to the selection of magnetic objects;

2. the overall structure is reliable and durable, low operating cost;

3. there are a variety of magnetic ﬁeld strength to choose from;

4. double stainless steel shell, prolong the service life of the cylinder.

Main technical parameters

Model	Cylinder size	Cylinder surface magnetism Induction strength Gs	Processing capacity		Main motor power	Discharge induction roll electricity Machine power	Cylinder speed	Total weight
Model	Cylinder size		t/h	m3/h	Main motor power		Cylinder speed	Total weight
CTB(N)-618G	600 x 1800		7-15	-48	3	1.5	40	1500
CTB(N)-712G	750x 1200		7-15	-48	4	1.5	35	1670
CTB(N)-718G	750x1800		10-22	-72	4	1.5	35	2100
CTB(N)-918G	900x1800		12-22	-90	5.5	2.2	28	2900
CTB(N)-1018G	1050x1800		20-35	-120	5.5	2.2	22	4000
CTB(N)-1021G	1050x2100		22-44	-140	7.5	2.2	22	4500
CTB(N)-1024G	1050x 2400		26-50	-160	7.5	2.2	22	5000
CTB(N)-1030G	1050x3000	1600-7000	32-62	-200	11	2.2	22	6300
CTB (N)-1224G	1200x2400		40-55	-200	11	2.2	17	6900
CTB(N)-1230G	1200x3000		50-70	-260	11	2.2	17	8000
CTB(N)-1240G	1200x4000		60-90	-350	18.5	3	17	10000
CTB(N)-1245G	1200x4500		70-100	-400	22	4	17	12000
CTB (N)-1530G	1500x3000		55-80	-320	18.5	3	14	9700
CTB(N)-1540G	1500x 4000		80-110	-400	22	4	14	13000
