The vertical compound crusher operates using a combination of impact and compression forces to crush materials. Its design features upper and lower hammer racks, with the upper rack equipped with four plate hammers and the lower rack with six plate hammers.

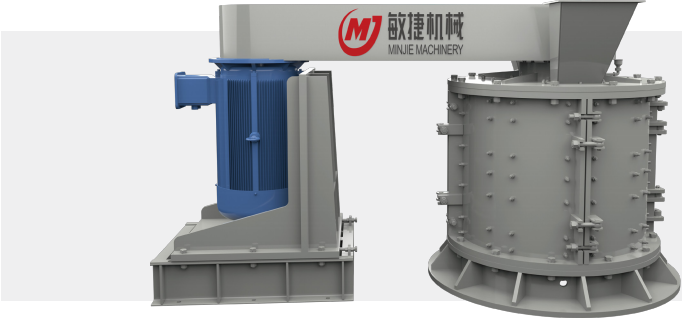

Product Name: Vertical Compound Crusher
Brand: Minjie
Basic Overview
The vertical compound crusher operates using a combination of impact and compression forces to crush materials. Its design features upper and lower hammer racks, with the upper rack equipped with four plate hammers and the lower rack with six plate hammers. Materials are fed through the inlet and pass through the crushing chamber within just 2-3 seconds, ensuring a high throughput and production capacity.
This crusher incorporates two crushing methods within a single machine:
- Impact Crushing: Resembling the functionality of an impact crusher, the machine uses high-speed impact to break down large materials into smaller fragments.
- Compression Crushing: Smaller fragments undergo further impact and compression, reducing them into fine powders or granules.
During the process, materials rotate and fall inside the chamber, ensuring thorough crushing. Unlike traditional crushers, the material discharged from the vertical compound crusher is loose, eliminating the need for additional disintegration equipment.
The rotor assembly is a key component of this crusher. The upper and lower hammer racks are integrally cast for superior rigidity and balance. The rotor undergoes static balancing treatment after assembly to ensure optimal stability during operation.
Applications
The vertical compound crusher is widely used across various industries, including construction materials, metallurgy, mining, coal, chemical processing, and power generation. It is suitable for crushing medium-hard materials such as:
- Construction Materials: Cement clinker, gypsum, limestone, sandstone, and blast furnace slag.
- Mining Materials: Iron ore, gold ore, molybdenum ore, asbestos ore, and phosphate rock.
- Coal: Coal blocks and medium-hard coal materials.
With the addition of new high-chromium alloy plate hammers, the crusher can also handle high-hardness materials such as river pebbles.
Technical Specifications
型 号 Model | PLF-1000 | PLF-1500 |
筒体直径 /mm Cylinder diameter | 1000 | 1500 |
主轴转速 r/min Spindle speed | 620 | 410 |
进料尺寸 /mm Feed size | ≤80 | ≤120 |
出料粒度 /mm Discharge particle size | 5-8 | ≤5 |
生产能力 /（t/h） Production capacity | 30 ～ 50 | 50 ～ 70 |
电机功率 /kW Motor power | 75 | 132 |
重量 /kg Weight | 7850 | 15243 |
外形尺寸 (长x宽x高)/mm External dimensions (length, width, height) | 2838x1500x1800 | 4248x2100x2250 |
Starting method, soft start | Soft startup | Soft startup |
Key Features
- High Efficiency: Combines impact and compression for optimal crushing.
- Wide Application Range: Handles a variety of medium-hard and high-hardness materials.
- Robust Design: Integrally cast hammer racks ensure durability and balance.
- Soft Startup: Reduces mechanical stress during startup, extending equipment lifespan.
- No Additional Equipment Needed: Discharges loose materials, eliminating the need for further disintegration.
Why Choose Minjie Crushers?
Minjie’s vertical compound crushers are designed to meet the most demanding requirements of modern industries. With innovative design, advanced manufacturing processes, and reliable performance, they are ideal for a wide range of crushing applications.
