Peripheral Discharge Rod Mill

China peripheral discharge rod mill for sale, Minjie machine manufacturers & suppliers supply peripheral discharge rod mill at factory wholesale price,get a quote now!

Send Email

Product details

The peripheral discharge rod mill can be used for crushing or grinding materials according to production needs. Dry or wet grinding can be selected based on the performance of the materials, and it can also be used for grinding block ores in the machinesand process. Its working principle is consistent with that of a conventional ball mill.

The raw materials are fed into the ball mill by a drum feeder, and the inner wall lining of the ball mill cylinder is made of high manganese steel, equipped with steel rods as the grinding medium. During the ball mill operation, the steel rods perform parabolic motion to crush and grind the materials, and ﬁnally are sent out through the opening around the slurry outlet cylinder, thereby entering the subsequent process end.

Performance characteristics

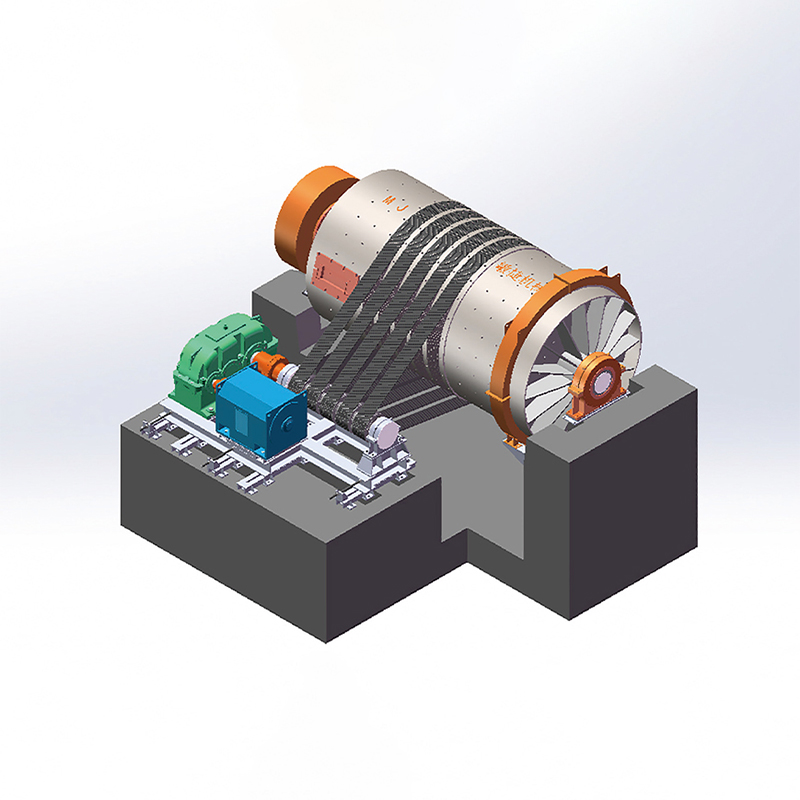

The rod mill produced by Minjie Company is diﬀerent from conventional mining ball mills in that it uses a V-belt drive, and the cylinder belt position is processed into a V-belt groove through a large CNC ﬂoor lathe,which can save energy and reduce costs.

Comparison of Belt Drive and Traditional Ring Gear Drive for Minjie Mechanical Mining Ball Mills

	Agile machinery	Transmission form	comparative analysis

transmission structure	belt drive	Ring gear transmission	Ring gear transmission has high noise and maintenance costs

Lubrication form	Belt does not require lubrication	Dip-feed Lubrication	The gear ring guard is prone to oil leakage and there is a lot of oil contamination on site

Main technical parameters

model	volume	Cylinder size	power	speed	Ore discharge particle size	production capacity
QCS2736	18	Ø2800×4100	355/400	21.7	0.15-3	40-150
QCS2745	25.7	Ø2800×5100	400/450	21.7	0.15-3	50-165
QCS3045	31.8	Ø3100×5100	450/500	20	0.15-3	60-200
QCS3250	32.3	Ø3300×5600	500/560	18.6	0.15-3	70-230
QCS3254	39.4	Ø3300×6000	560/630	18.6	0.15-3	80-280
