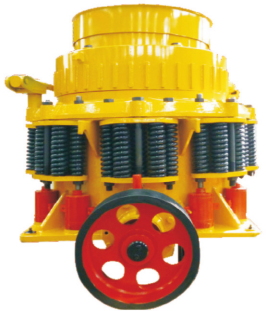

The MPH High-Efficiency Composite Cone Crusher Series is designed with an optimized combination of crushing frequency and eccentric distance, ensuring finer crushing results and significantly higher output compared to similar models. By enhancing the inter-particle lamination crushing effect, the crusher improves the particle shape of crushed materials. Equipped with advanced hydraulic systems for insurance, locking, adjustment, and cavity cleaning, the MPH series makes operations highly automated and efficient.

This versatile product is widely used across industries such as metallurgy, construction, hydropower, transportation, chemical engineering, and building materials. It is ideal for crushing various hard and medium-hard ores and rocks.

Key Features

1. Innovative Structure:
   The crusher features a novel, unique, simple, and reasonable structure, ensuring balanced operation and low running costs. The main body is constructed entirely of cast steel, with reinforcing ribs added to high-stress points for enhanced durability. The drive shaft has tapered roller bearings on both ends, and power transmission is achieved via heavy-duty bevel gears. A skeleton seal prevents lubrication oil leakage.

2. Hydraulic Adjustment Mechanism:
   Every cone crusher is equipped with a hydraulic adjustment system, allowing for quick and convenient adjustment of the discharge port size.

3. Hydraulic Cleaning Mechanism:
   A standard configuration for all cone crushers, the hydraulic cleaning mechanism is powered by eight hydraulic cylinders located at the base of the machine, ensuring efficient cavity cleaning.

4. Spring-Style Overload Protection:
   The crusher includes a "spring-style" iron release protection system, safeguarding the equipment from potential damage.

5. Advanced Lubrication System:
   The external lubrication system includes an oil pump, oil tank, and pipelines. If the oil temperature exceeds safe limits or the oil flow rate decreases, the crusher will automatically shut down to prevent damage.

Applications

The MPH series is ideal for:

• Crushing hard and medium-hard ores and rocks.
• Supporting projects in metallurgy, construction, hydropower, transportation, chemical industries, and building materials.

Product Specifications

型号  Model	腔型 Chamber	破碎直径 Crushing diameter		最大进料粒度 Max feed size (mm)		最小排料口尺寸 Min of discharge size (mm)	重量   Weight （t)	主电动机功率 Main motor power (kW)	通过量（t/h) Throughput
		(inch)	(mm)
									6	1 0	1 3	1 6	1 9	22	25	38	51	64
MPH1000	C	40"	1016		160	13	10.8	90-110			70	90	125	135	160	215
	M	40"	1016		115	10	10.8	90-110		55	65	70	90	120	135
	F	40"	1016		80	8	10.8	90-110	47	50	60	67	90
MPH1200	C	45"	1143		180	13	16	110-132			105	120	135	160	180	220
	M	45"	1143		130	10	16	110-132		72	92	105	135	150	170
	F	45"	1143		90	10	16	110-132		70	90	100	125
MPH1300	C	51"	1296		200	16	23	132-160				135	160	180	200	290	350
	M	51"	1296		150	13	23	132-160			105	125	135	160	180
	F	51"	1296		102	10	23	132-160		80	105	135	140
MPH1400	C	54"	1372		215	19	27	185-220					180	220	270	350	440
	M	54"	1372		160	16	27	185-220				160	180	200	230
	F	54"	1372		115	13	27	185-220			150	195	220	240
MPH1650	C	60"	1524		235	22	37.8	220-250					230	265	330	450	520	570
	M	60"	1524		175	19	37.8	220-250					215	240	270	330
	F	60"	1524		130	13	37.8	220-250			180	210	240	265	285
MPH1950	C	68"	1720		350	22	44.3	300						330	390	525	655	725
	M	68"	1720		203	16	44.3	300				230	270	300	330
	F	68"	1720		140	13	44.3	300		185	225	265	340
