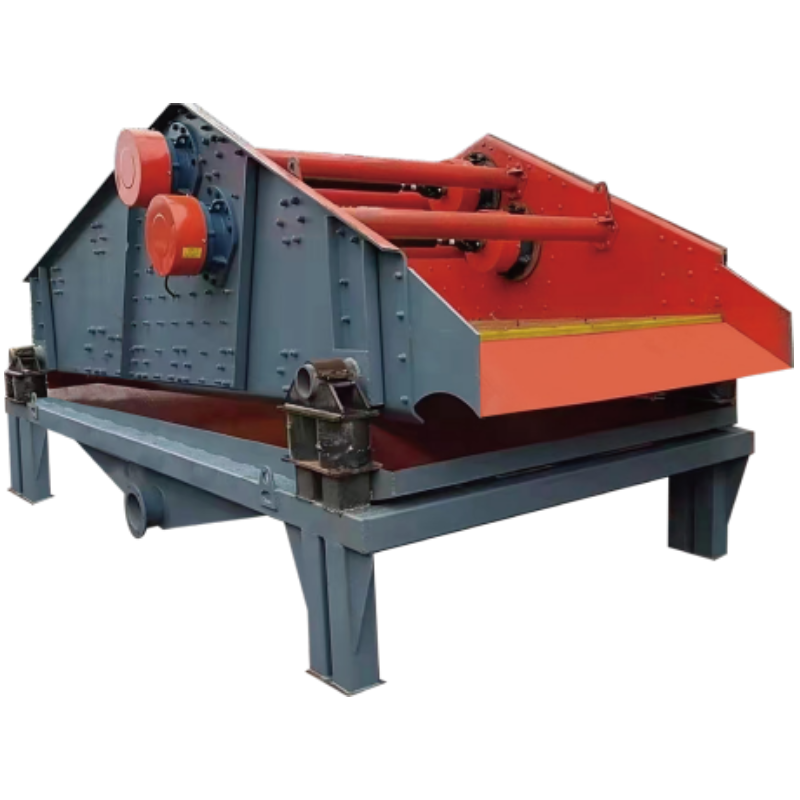

The main function is dewatering.desliming and removal.Widely used for sand washing(sand and gravel factory).coal slime recov- ery (coal factory).dry tailings (minefactory),etc.,so it is also called sand dewatering screen, mine dewatering screen,coal slime sieve,tailings dewatering screen,high frequency dewatering screen,etc. .
Product features
1.Screen material is made of high polymer polyurethane resistance,wear resistance,chemical resistance;
2.Vibration motor is easy to replace.Rubber spring of base is used for shock absorption,so that its amplitude is small.Slow vibra- tion,the material can be removed cleanly:
3.Can be customized according to output and water content. Side plate of the body has a reinforcing plate,Equipped bar in the bottom.and outiet is supported by triangular steel plate,which is thick;
4.Vibration motor is fixed with high-strength bolts.Bottom affect the life of vibration motor.Sieve plate has a high fixed densi- tyand stiffenexs in it.
Product features
Screen structure (preparation, punching, seam), mesh size, processing capacity, material granularity.
Main technical parameters
型号 | 筛面面积 (m²) | 功率 (kW) | 处理能力 (m/h) | 进料粒度 (mm) | 重量（t） | 外形尺寸 (mm) |
Model | Scraen area | Power | Capacity | Feed particeSize | Weight | Dimension |
SYTS-0820 | 1.5 | 0.75x2 | 5-10 | 10 | 0.8 | 2300x1000x750 |
SYTS-0920 | 1.8 | 1.1x2 | 10-20 | 10 | 1.2 | 2300x1200x750 |
SYTS-1020 | 2.0 | 1.5x2 | 20-30 | 10 | 1.6 | 2300x1300x750 |
SYTS-1225 | 3.0 | 2.2x2 | 50-80 | 10 | 2.1 | 2300x1500x750 |
SYTS-1530 | 4.5 | 3.0x2 | 100-120 | 10 | 3.2 | 2300x1800x750 |
