Working Principles:

The 2 Levels Bi-Directional Stereo Garage operates with a unique combination of vertical and horizontal movements to maximize parking efficiency:

• Two-Level Design: The system is arranged in two levels. The ground level allows direct access to parked vehicles, while the upper level utilizes a lifting platform to move vehicles up and down.
• Horizontal Movement: The ground-level parking platform moves horizontally to create space beneath the upper level, allowing the upper platform to descend for vehicle access.
• Smooth Operation: The motor chain-driven lifting system ensures balanced and smooth vehicle movements with minimal noise.

Key Features and Benefits:

1. High Space Utilization:

   • Compact design requires minimal ground space, making it suitable for areas with limited parking availability.
   • The system can be customized with various column arrangements based on user requirements.

2. Flexible Layout:

   • Versatile and modular design allows for the combination of multiple units to create large parking facilities.

3. Cost-Effective:

   • Low initial equipment costs combined with minimal maintenance expenses result in a cost-effective parking solution.

4. Comprehensive Safety Features:

   • Equipped with multiple safety devices, including crash prevention, emergency stop, overload protection, and ultra-long vehicle detection.
   • Safety interlocking devices ensure secure operation at all times.

5. User-Friendly Operation:

   • Fully automated PLC control system with options for button operation and IC card access.
   • Smooth and reliable operation with low noise, providing a comfortable user experience.

6. Advanced Security Measures:

   • Prevents vehicle mis-entry, falling, and other potential hazards with state-of-the-art security systems.

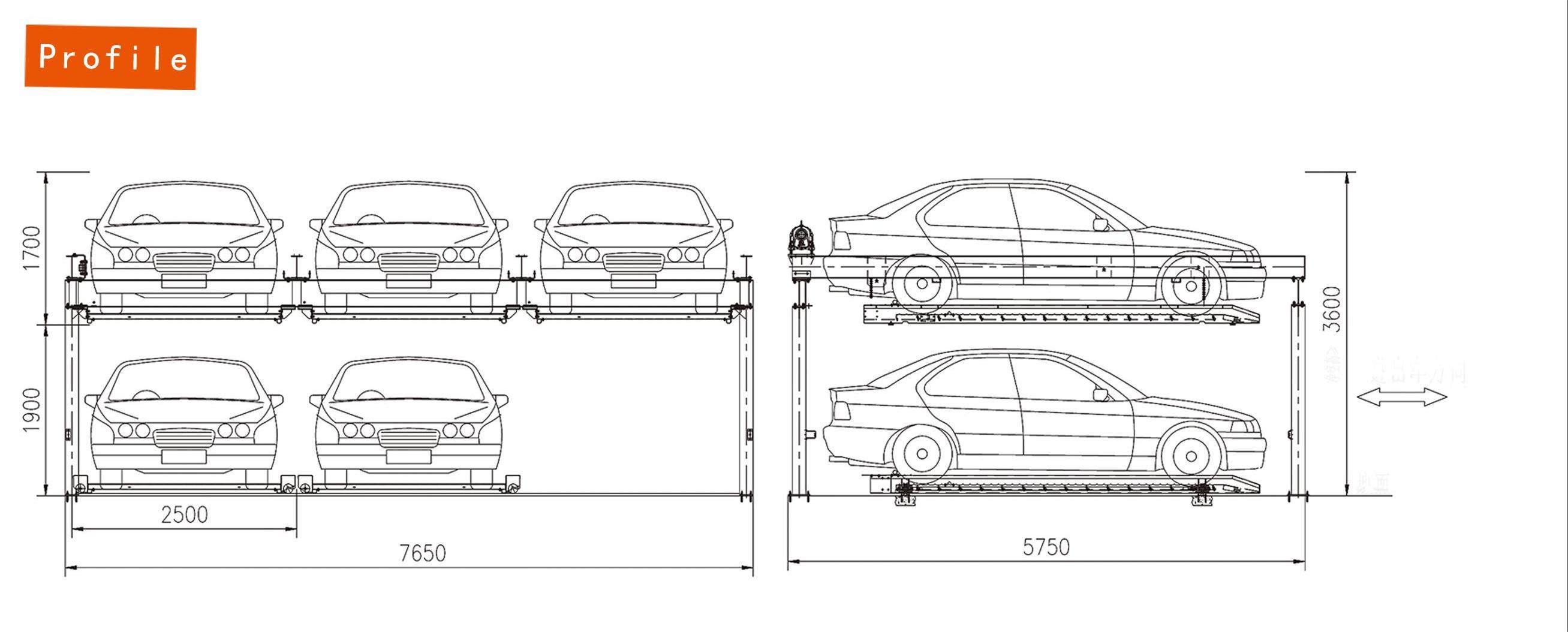

Design Parameters:

• Model: 2 Levels Bi-Directional Stereo Garage
• Car Size (L × W × H): 5000mm x 1850mm x 1750/1550mm
• Capacity Weight: ≤2350kg
• Drive Mode: Motor wire rope
• Elevation Power: 2.2kW
• Horizontal Shift Power: 0.2kW
• Power Supply: Three-phase, Five-wire 380V/50Hz
• Elevation Speed: 4.2m/min
• Horizontal Shift Speed: 8m/min
• Control System: PLC Logic Automatic
• Operation Method: Key, IC card operation

Safety Devices:

• Crashproof Device
• Emergency Stop Button
• Upper and Lower Protection Devices
• Current Overload Protection
• Move Over Limit Protection
• Optoelectronic Detection Device
• Up and Down Positioning Switch
• Wheel Lever for Entry
• Power Failure Braking Device
• Transverse Shift Positioning Switch
• Safety Interlocking Devices
• Chain Cover
• Ultra-Long Vehicle Detection

Product Highlights:

• Smooth and Silent Operation: The motor chain-driven system ensures that vehicle movement is both smooth and quiet, enhancing the user experience.
• High Safety Standards: Equipped with multiple safety devices, the garage system guarantees protection against accidents and unauthorized access.
• Space Efficiency: The bi-directional stereo design optimizes space usage, making it ideal for locations with limited parking areas.
• Cost-Effective Maintenance: Designed for low operational and maintenance costs, providing long-term value to users.
• Advanced Automation: The fully automated PLC control system offers seamless operation with user-friendly interface options, including button and IC card controls.

Product Specifications:

Model	2 Levels Bi-DirectionalStereo Garage
Car Size(L×W×H)	5000mmx1850mmx1750/1550mm
Capacity Weight	≤2350kg
Drive Mode	Motor wire rope
Electric Motor	Elevation:2.2kW
	Horizontal shift:0.2kW
Power Supply	Three-phases Five-wires 380V/50HZ
Speed	Elevation:4.2 m/min
	Horizontal shift:8m/min
Control	Control PLCLogic Automatic
Operation	Key,IC card operation
Safety Devices	oWarning devices in operation	oCrashproof device
	oEmergency stop device	oUpper and lower protection devices
	OCurrent overload protection	OMove over limit protection device
	0Optoelectronic detection device for entry	oUp and down positioning switch
	oWheel lever	OPower failure braking device
	oTransverse shift positioning switch	OSafety interlocking devices
	oChain cover	oUltra long test

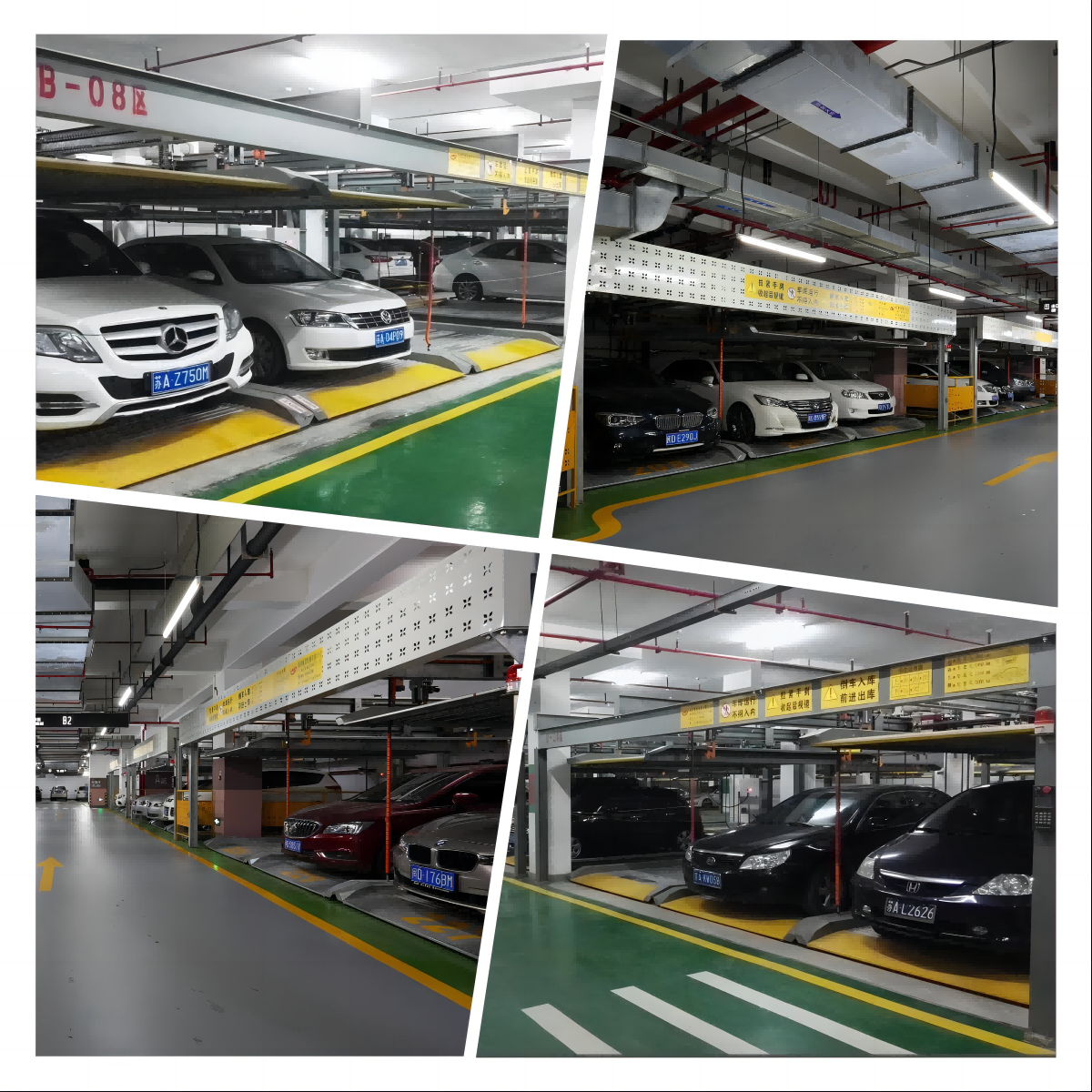

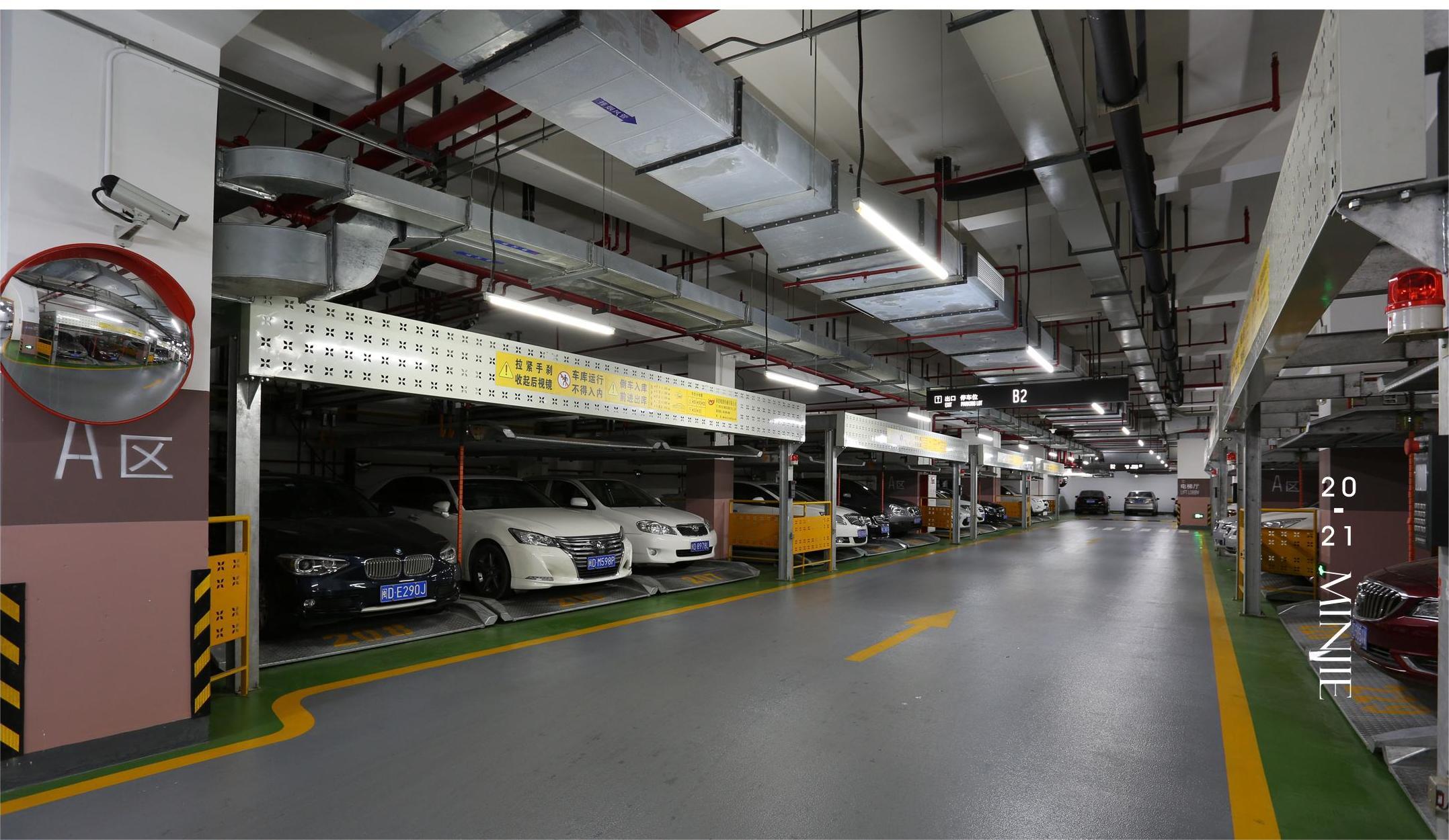

Product Images:

Company Information:

Fujian Minjie Machinery Co., Ltd. is a leading manufacturer of advanced parking solutions, specializing in innovative and reliable equipment that maximizes space utilization and enhances safety. With a strong commitment to quality and customer satisfaction, Minjie Machinery has earned a reputation for excellence in the parking industry.
