Working Principles:

The Basement-Ground-1st Level Bi-Directional Stereo Garage operates on a sophisticated mechanism that divides the parking structure into upper, middle, and lower levels:

• Multi-Level Configuration: The system includes underground parking levels and two levels above ground. The upper and lower levels feature lifting capabilities, while the middle level is designed for horizontal movement.
• Vehicle Access: Vehicles parked on the upper and lower levels are accessed by raising or lowering them to ground level. The middle level provides direct access, allowing vehicles to drive straight in and out. Horizontal movement of the middle level creates space for accessing vehicles on other levels.
• Optimized Space Usage: The design maximizes the use of underground space, significantly increasing the number of parking spaces available within a constrained area.

Key Features and Benefits:

1. Maximized Space Efficiency:

   • This system minimizes the required surface area by effectively utilizing underground space, significantly increasing parking capacity without expanding the footprint.

2. Smooth and Quiet Operation:

   • Powered by a motor chain drive, the system operates smoothly with minimal noise, ensuring a comfortable experience for users.

3. Simple and Stable Design:

   • The garage features a straightforward structure that ensures good stability and ease of maintenance, reducing long-term operational costs.

4. Advanced Safety Features:

   • Equipped with comprehensive safety systems, including crashproof devices, emergency stop mechanisms, and optoelectronic detection, the system ensures secure operation for both vehicles and users.

5. User-Friendly Control:

   • The PLC logic automatic control system simplifies operation, allowing for easy vehicle access via key or IC card. The system is designed with user convenience and reliability in mind.

6. Durable and Reliable Performance:

   • The garage is built using high-quality materials, ensuring long-lasting performance with minimal maintenance. The motor chain drive system is designed for durability, providing consistent and reliable service over time.

Design Parameters:

• Model: Basement-Ground-1st Level Bi-Directional Stereo Garage
• Car Size (L × W × H): 5000mm × 1850mm × 1750/1550mm
• Capacity Weight: ≤2350kg
• Drive Mode: Motor chain drive
• Elevation Power: 2.2kW
• Horizontal Shift Power: 0.2kW
• Power Supply: Three-phase, Five-wire 380V/50Hz
• Elevation Speed: 4.2m/min
• Horizontal Shift Speed: 8m/min
• Control System: PLC Logic Automatic Control
• Operation Method: Key, IC card operation

Safety Devices:

• Crashproof Device
• Emergency Stop Device
• Upper and Lower Protection Devices
• Current Overload Protection
• Move Over Limit Protection Device
• Optoelectronic Detection Device
• Up and Down Positioning Switch
• Wheel Lever for Entry
• Power Failure Braking Device
• Transverse Shift Positioning Switch
• Safety Interlocking Devices
• Chain Cover
• Ultra-Long Vehicle Detection

Product Highlights:

• Space-Saving Design: The combination of underground and above-ground levels maximizes parking capacity within a minimal surface area, making it ideal for densely populated areas.
• Quiet Operation: The motor chain drive ensures smooth and low-noise operation, enhancing the user experience.
• Reliable and Safe: Comprehensive safety systems protect vehicles and users, while the durable design ensures reliable performance over many years.
• Easy Maintenance: The simple structure and reliable components make maintenance straightforward and cost-effective.

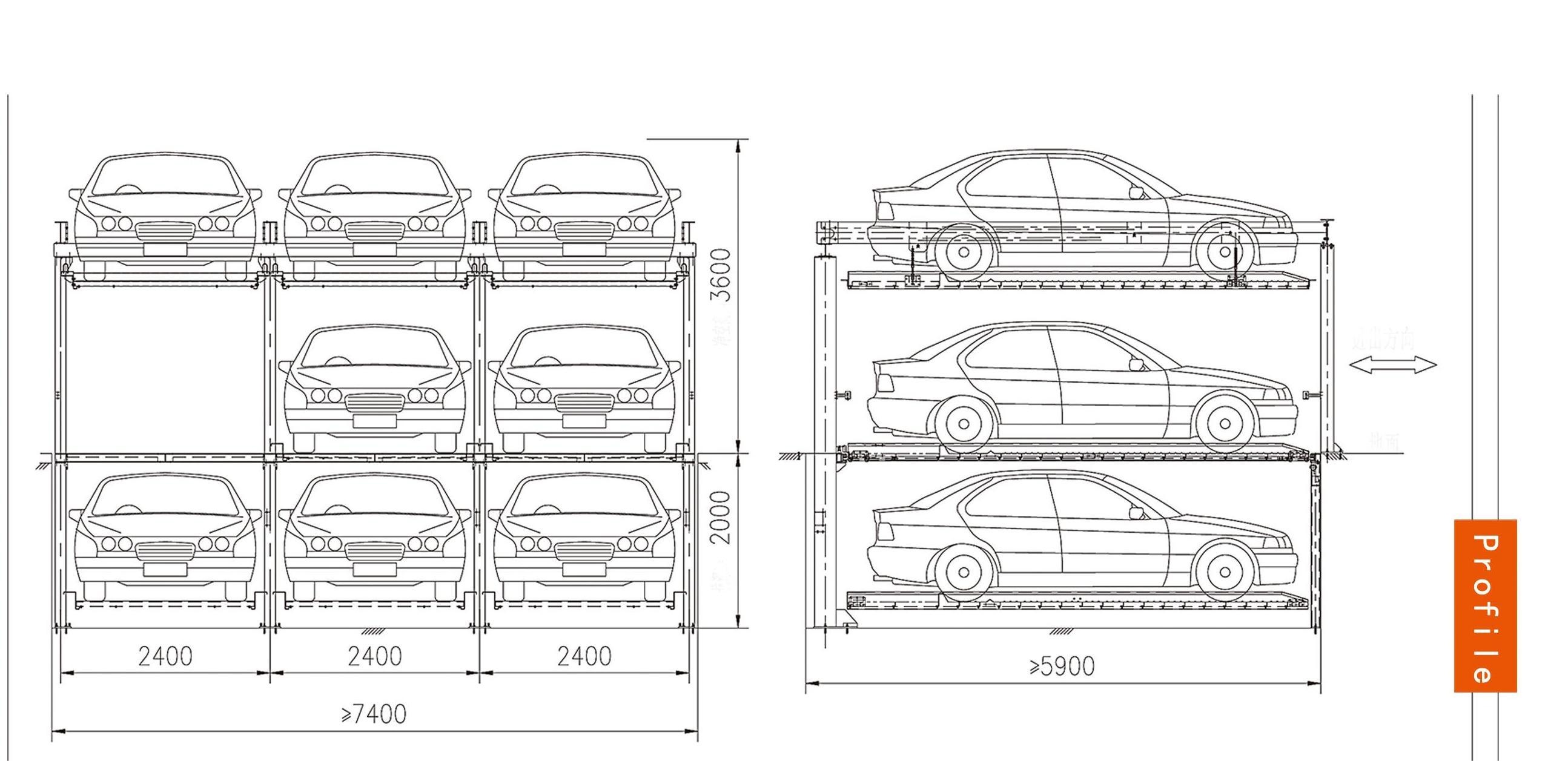

Product Specifications:

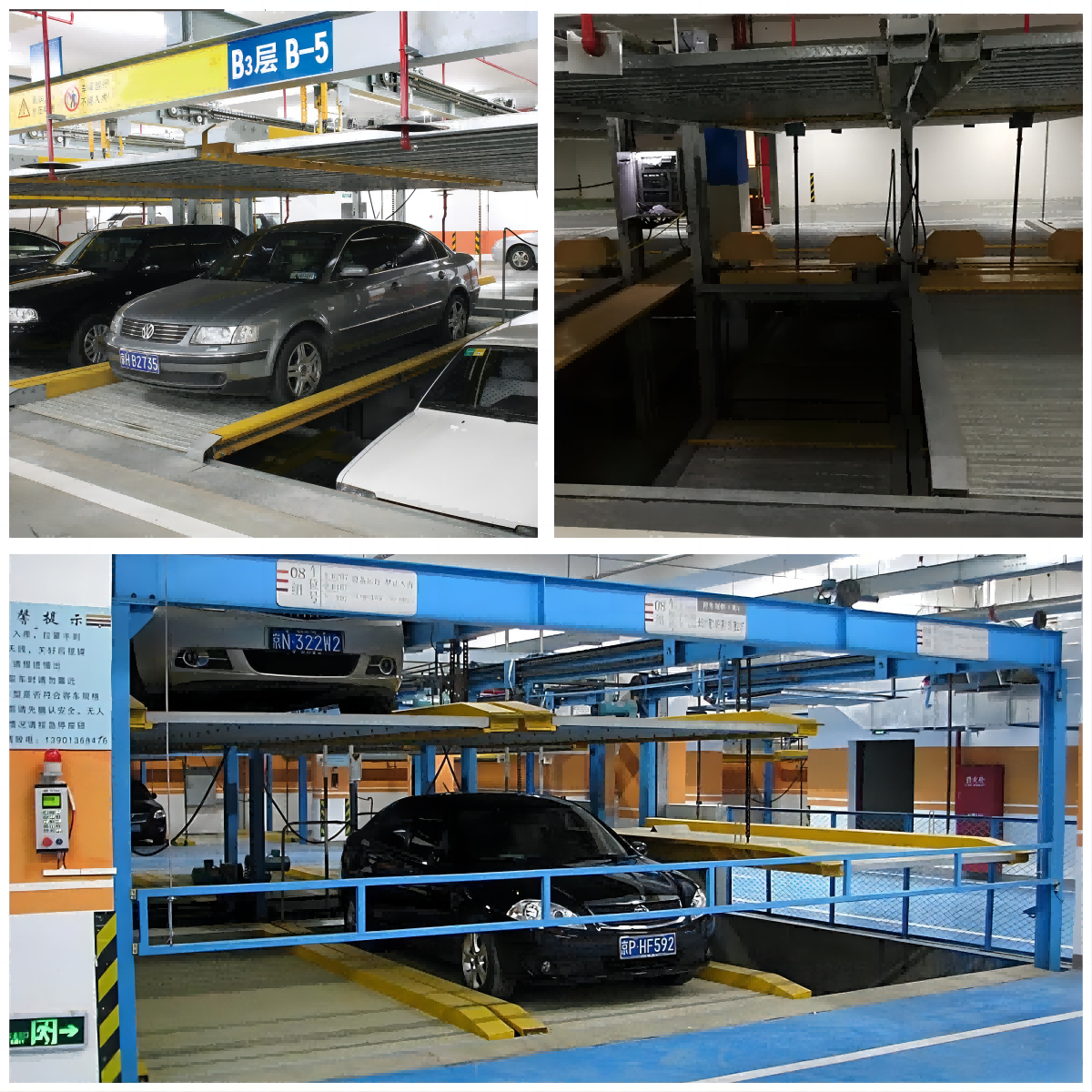

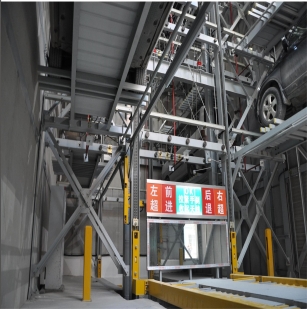

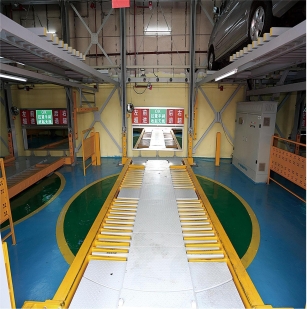

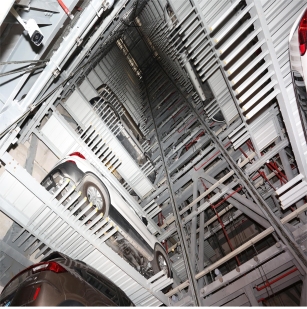

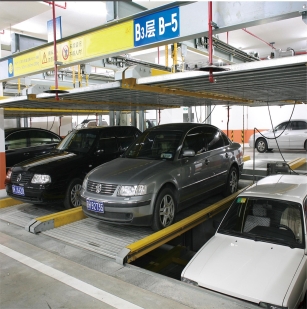

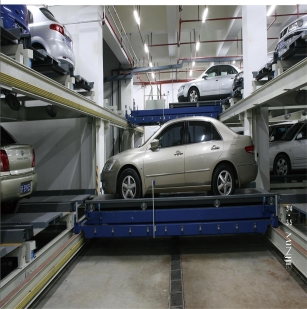

Product Images:

Company Information:

Fujian Minjie Machinery Co., Ltd. is a leader in the development and production of advanced parking solutions. With a focus on innovation, quality, and customer satisfaction, Fujian Minjie Machinery has earned a reputation for delivering reliable and efficient parking systems tailored to meet the needs of modern urban environments.
