The Plane Shuttle Stereo Garage by Fujian Minjie Machinery Co., Ltd. is an advanced, fully automated parking solution designed to optimize space usage, enhance parking efficiency, and ensure vehicle safety. Its intelligent design incorporates state-of-the-art technology that streamlines the process of parking and retrieving vehicles. This system is ideal for both urban environments with space constraints and locations with high parking demand, offering seamless, secure, and space-saving operations.

Product Details
The Plane Shuttle Stereo Garage operates on a fully automatic system comprising translation vehicles, conveyors, elevators, and access halls. When the user drives into the parking hall, a photoelectric sensor checks that the vehicle meets the required specifications. The car is then seamlessly transported to a designated storage space via elevators and translation vehicles. When retrieving the vehicle, the system retrieves it from storage and delivers it to the access hall, making the process fast, convenient, and completely automated.

Key Features and Benefits

1. Intelligent Parking System
The smart transporter automatically resets the parking space, making the system space-efficient. It requires less roadway and clearance height, providing an optimized solution for parking management.

2. Time-Efficient Operations
The coordinated movement between all system components reduces the time required for entry and exit. A single car access time ranges between 60-120 seconds, and continuous car access averages under 90 seconds, ensuring high efficiency and automation.

3. Robust Safety Measures
With multiple layers of safety protection such as emergency stop devices, current overload protection, and vehicle dimension detection, the system ensures the safety of both users and vehicles. Additional features include anti-crash systems and warning devices during operation.

4. Easy and Convenient Operation
Users enjoy a hassle-free experience with forward-only vehicle movement, eliminating the need for reversing or turning. Fixed parking users can swipe cards for easy access, while temporary users are assisted by operators.

5. Full Protection of Vehicles
The fully enclosed construction ensures the vehicles remain clean and secure, free from external environmental impacts.

6. Low Maintenance and Operation Cost
Fully automatic operation reduces labor costs and maintenance requirements, making it a cost-effective solution for both small and large parking facilities.

7. Flexible Configuration
The garage offers flexible configurations. Multiple translation vehicles can be placed on each floor for frequent access, or a single vehicle can be shared across multiple floors using elevators, reducing equipment costs where needed.

8. Space Optimization
With the ability to build up to 12 storeys, the garage offers a high utilization rate of space. It can be configured for above-ground, underground, or semi-underground installations, making it versatile for various environments.

Technical Specifications

Specification	Details
Model	Plane Shuttle Stereo Garage
Layer Number	2月12日
Car Size (L×W×H)	5300mm×1950mm×1550/2050mm
Capacity Weight	≤2350kg
Operational Mode	Automatic/Manual
Lifting Speed	30-90 m/min
Transverse Movement Speed	40-95 m/min
Vertical Displacement Speed	30-60 m/min
Rotation Speed	4 rpm
Motor Power - Lifting	3kW
Motor Power - Transverse Movement	2.2-4kW
Motor Power - Vertical Displacement	≤3kW
Motor Power - Rotation	3kW
Power Supply	Three-phases five-wires 380V/50HZ
Control Logic	Automatic Control with PLC

Safety Features

• Emergency stop device
• Move over limit protection device
• Upper and lower protection devices
• Up and down positioning switch
• Chain cover
• Current overload protection
• Optoelectronic detection for vehicle dimensions
• Crashproof devices
• Transverse shift positioning switch
• Power failure braking device
• Automatic door anti-clamping device

Product Highlights

• Efficient Use of Space: With up to 12 storeys and flexible configurations, the garage maximizes parking density.
• High Automation: Fast, automated processes significantly reduce parking and retrieval time.
• Enhanced Safety: Comprehensive safety measures protect both vehicles and users during operation.
• Low Operational Cost: Fully automatic systems reduce maintenance needs and operational expenses.
• Flexible Installation Options: Suitable for above-ground, underground, or semi-underground configurations.
• Convenient User Experience: No reversing or turning is required, simplifying the parking process.

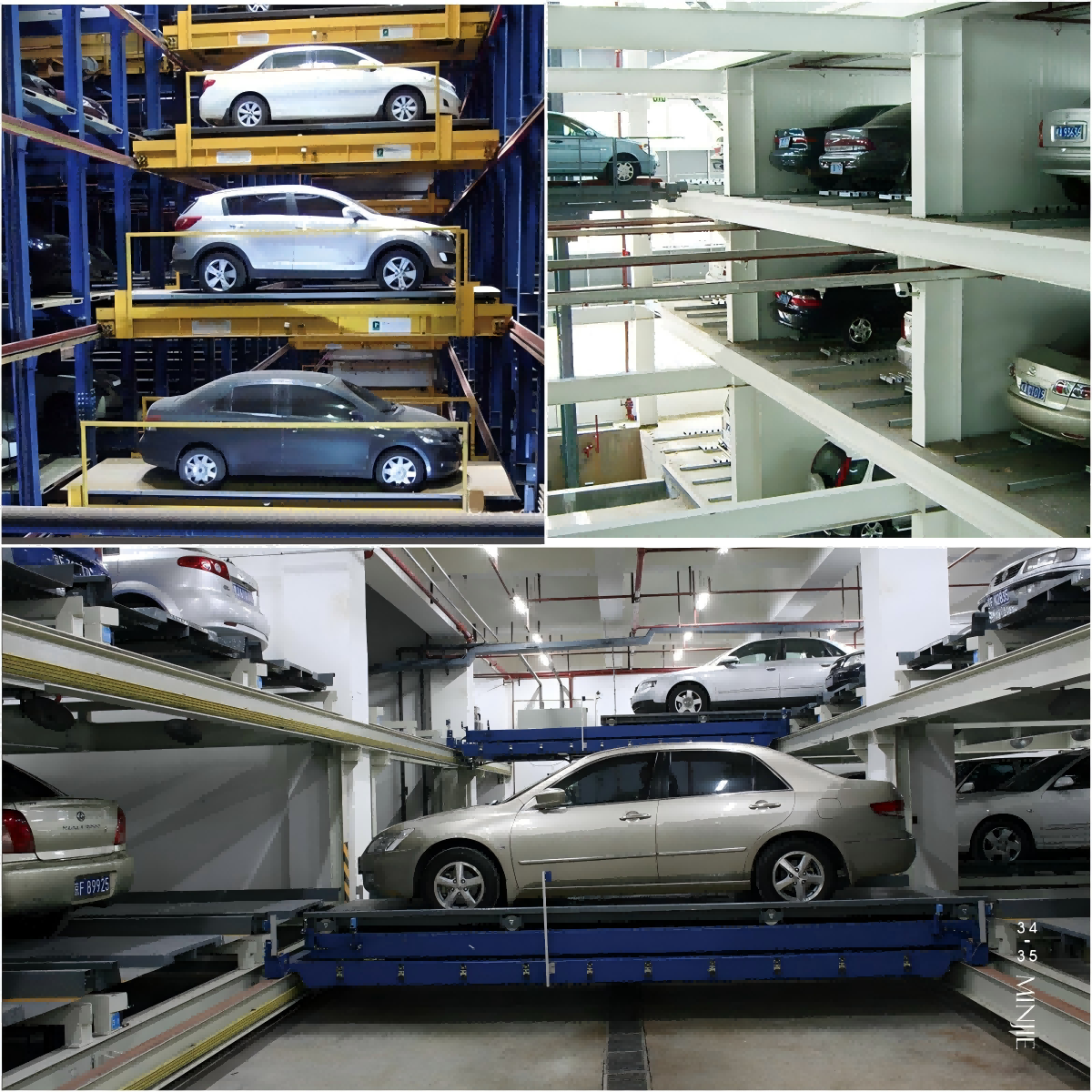

Placeholder for Product Images:

At Fujian Minjie Machinery Co., Ltd., we pride ourselves on delivering cutting-edge technology solutions that cater to modern infrastructure needs. Our Plane Shuttle Stereo Garage stands as a testament to our commitment to innovation, quality, and customer satisfaction.
