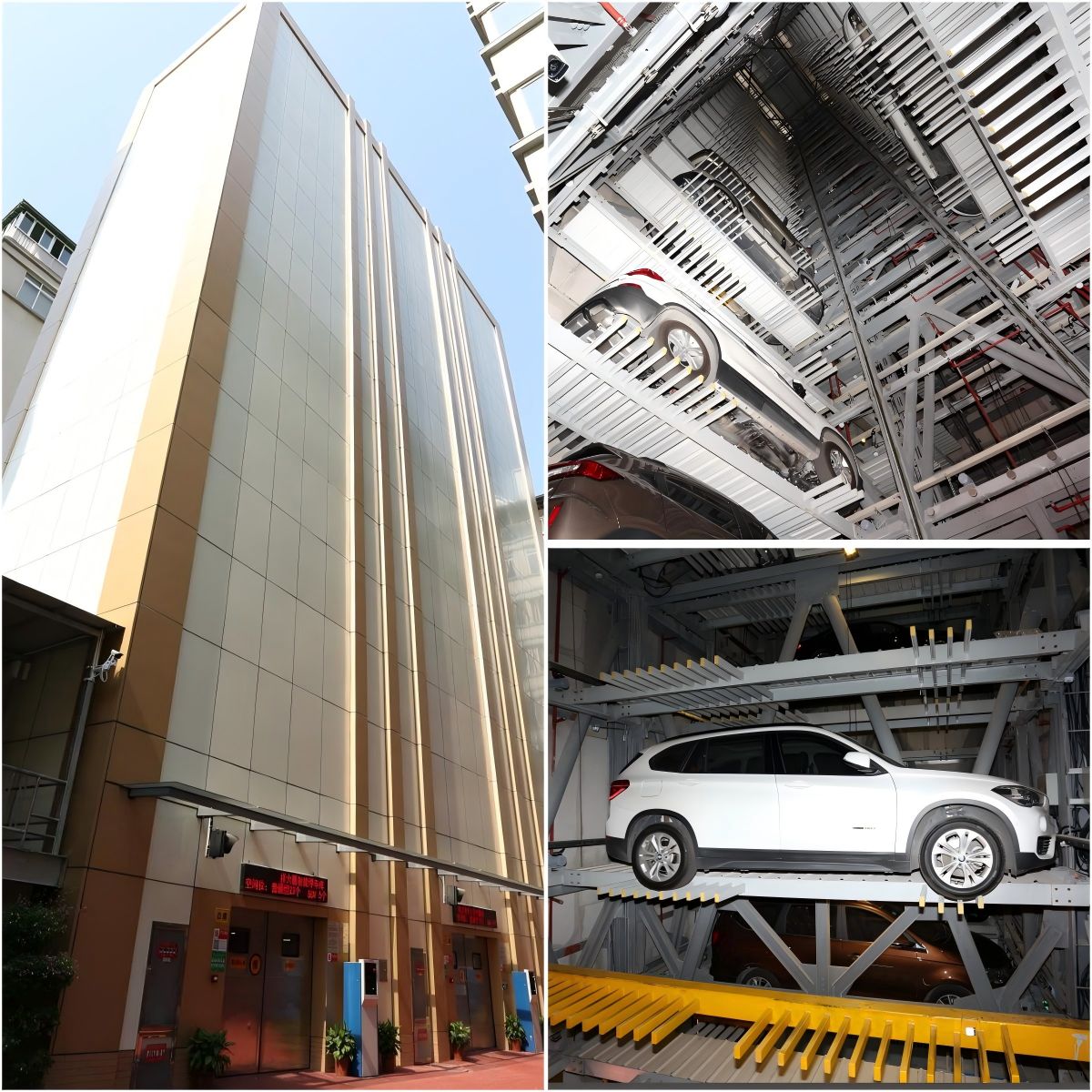

The Tower Type Vertical Lifting Stereo Garage by Fujian Minjie Machinery Co., Ltd. is a highly automated and space-efficient parking solution designed to provide rapid, secure, and smart parking services. Ideal for urban areas with limited ground space, this vertical garage offers a multi-level, fully enclosed parking system that enhances safety, reduces environmental impact, and increases vehicle parking efficiency. The system utilizes a central lifting mechanism, horizontal parking platforms, and a rotating turntable to simplify vehicle entry and exit, ensuring ease of use and high performance.

Product Details

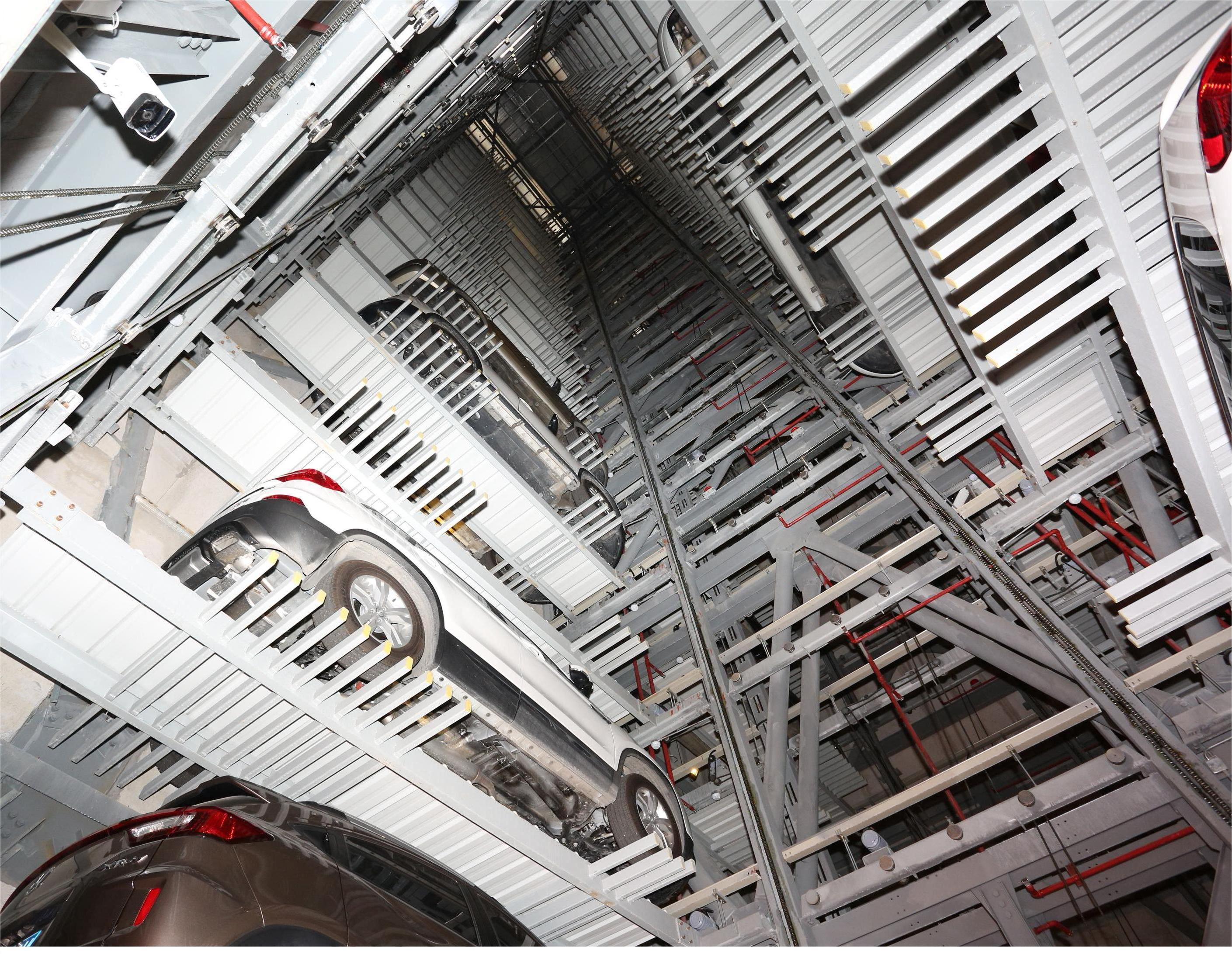

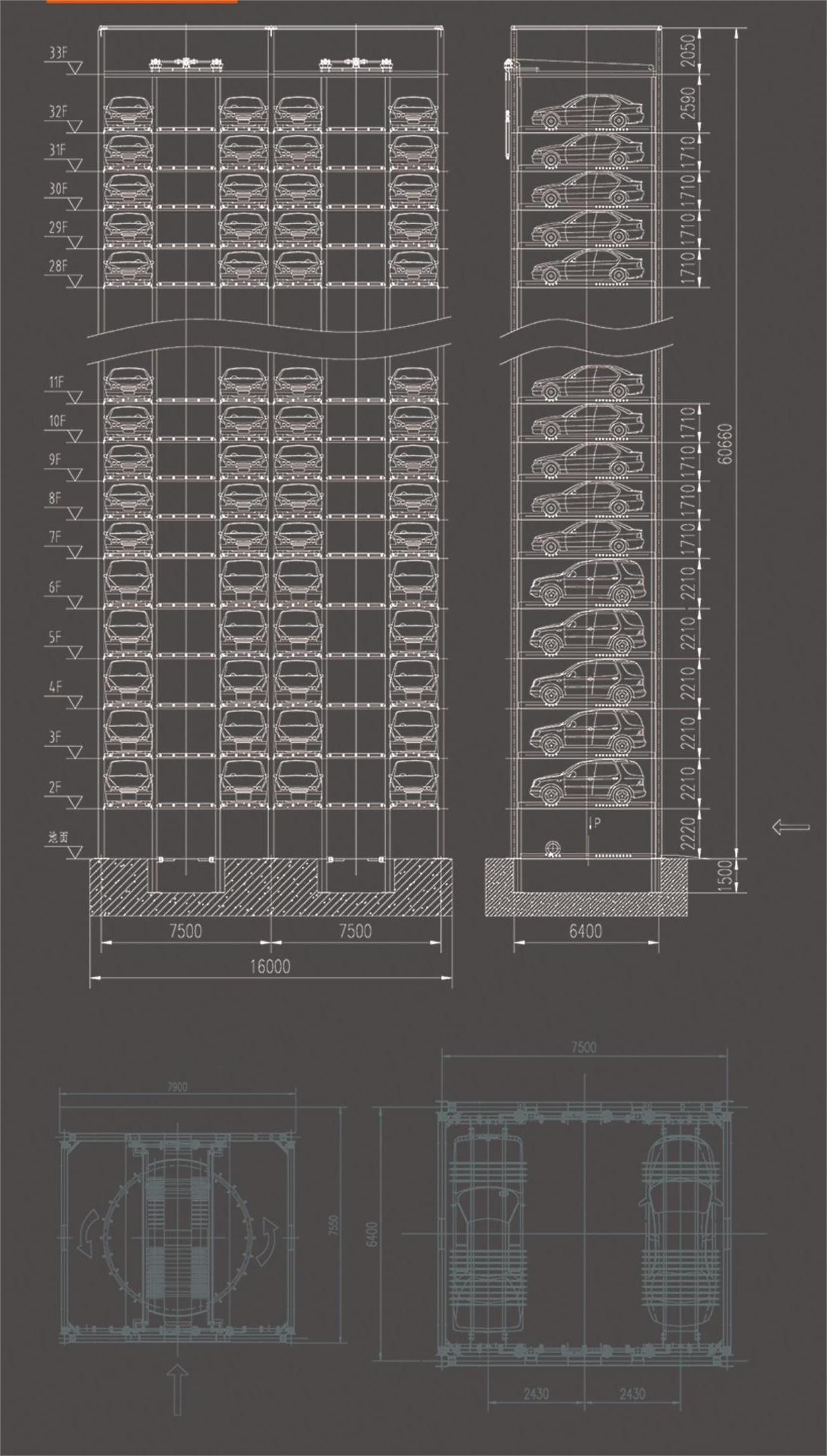

The Tower Type Vertical Lifting Stereo Garage operates by using a central lifting passage surrounded by parking spaces on either side. Each parking space features a movable platform where vehicles are stored. The central lift transports the vehicle or platform to the desired parking level, and the platform then moves horizontally into the designated space. When retrieving a vehicle, the system returns it to the entrance/exit area, rotating the car with a turntable to ensure it faces forward. The fully automated garage system guarantees a seamless, secure, and convenient experience for users.

Key Features and Benefits

1. Space-Saving and High Performance
This garage system requires minimal ground space, making it perfect for crowded urban settings. Its vertical design maximizes space utilization while offering high-performance, energy-efficient operations with low noise levels and minimal environmental impact.

2. Fully Enclosed Safety and Security
The fully enclosed structure provides a secure, anti-theft environment that ensures the best protection for vehicles. The garage’s automated management system adds an extra layer of security for peace of mind.

3. Fast and Efficient Vehicle Access
The system supports high-speed vehicle entry and exit, taking only 50-120 seconds per car. Using advanced frequency conversion technology, the system adjusts its speed smoothly and safely, ensuring quick and easy access for drivers.

4. Intelligent Vehicle Detection
The garage can automatically identify vehicle sizes and assign them to appropriate parking spaces, making it efficient for both SUVs and standard cars. This smart system optimizes parking space allocation for different vehicle types.

5. Easy Operation and Low Maintenance
The intuitive interface allows for simple operation using a touchscreen and IC card system. In addition, the garage is designed for easy maintenance, reducing downtime and costs.

6. Customizable Exterior Design
The garage can be designed with either a steel structure or a concrete exterior wall. It can be integrated into the architecture of the main building, enhancing the overall aesthetics and environment of the surrounding area.

7. Advanced Safety Features
Equipped with a full range of safety devices, including emergency stop mechanisms, current overload protection, crashproof devices, and automatic door anti-clamping systems, the Tower Type Vertical Lifting Stereo Garage ensures maximum safety for both users and vehicles.

Technical Specifications

Specification	Details
Model	Tower Type Vertical Lifting Stereo Garage
Layer Number	2 to 6 levels / 7 to 31 levels
Car Size (SUV)	5300mm × 1950mm × 2050mm
Car Size (Ordinary Car)	5300mm × 1950mm × 1550mm
Capacity Weight	≤2350kg
Drive Mode	Double chain drive
Electric Motor Power (Lifting)	11-30kW
Electric Motor Power (Transverse Movement)	0.2kW
Electric Motor Power (Rotate)	2.2kW
Power Supply	Three-phases five-wires 380V/50HZ
Lifting Speed	60-120 m/min
Transverse Velocity	12 m/min
Rotation Speed	2.3 r/min
Control Logic	Automatic Control of Frequency Conversion PLC
Operation	Touch screen and IC card operation

Safety Features

• Emergency stop device
• Move over limit protection device
• Upper and lower protection devices
• Up and down positioning switch
• Chain cover
• Current overload protection
• Optoelectronic detection for vehicle length, width, and height
• Crashproof devices
• Transverse shift positioning switch
• Power failure braking device
• Automatic door anti-clamping device

Product Highlights

• Vertical Space Optimization: Utilizes vertical space, making it ideal for high-density urban environments where ground space is limited.
• Automated Parking and Retrieval: A fully automated system ensures a hassle-free experience for drivers, allowing them to park and retrieve their cars with ease.
• Secure and Fully Enclosed: The enclosed structure protects vehicles from environmental damage, theft, and unauthorized access, making it a reliable option for vehicle safety.
• Customizable Design: The exterior can be tailored to fit the architectural style of surrounding buildings, enhancing both functionality and visual appeal.
• Energy Efficient and Environmentally Friendly: The system operates with low power consumption and noise levels, reducing its impact on the environment.
• Quick Access Times: With an operational speed that allows for vehicle access in as little as 50 seconds, this system offers high efficiency for busy areas.

Placeholder for Product Images:

At Fujian Minjie Machinery Co., Ltd., we focus on providing state-of-the-art parking solutions that are both efficient and reliable. The Tower Type Vertical Lifting Stereo Garage is a testament to our commitment to innovation, safety, and customer satisfaction. Our systems are designed to meet the growing needs of modern cities, offering practical and intelligent solutions for the future of urban parking.
