The 3-8 Levels Bi-Directional Stereo Garage is a state-of-the-art parking solution designed to maximize vehicle storage in limited spaces. This multi-level garage system leverages advanced technology to provide flexible parking arrangements, accommodating various vehicle sizes with ease. The system’s robust design ensures smooth and safe operation, making it an ideal choice for both residential and commercial applications.
Working Principles:
The 3-8 Levels Bi-Directional Stereo Garage operates using a sophisticated combination of vertical and horizontal movements across multiple levels:
- Multi-Level Configuration: The system is designed with multiple levels, where the first level allows only horizontal movement, the top level allows only vertical movement, and the middle levels enable both horizontal and vertical movements.
- Horizontal and Vertical Movement: The parking spaces on the first level provide direct access to vehicles. For the middle levels, the system utilizes horizontal and vertical shifts to position vehicles for easy access. The top level uses a lifting platform to move vehicles up and down.
- Efficient Vehicle Access: The system automatically repositions platforms to allow the middle-level vehicles to be accessed smoothly by lowering them to the ground level.
Key Features and Benefits:
Maximized Space Utilization:
- The multi-level design allows for a significant increase in parking capacity within a limited area, making it highly efficient for urban environments.
Advanced Vehicle Detection:
- Equipped with a vehicle super-long detection device that ensures vehicles are correctly parked, preventing parking errors.
Automatic Safety Systems:
- The system automatically halts operation if it detects a person or vehicle mis-entry, providing enhanced protection for both users and vehicles.
Robust Safety Features:
- Multiple safety devices, including crash protection, emergency stop, and overload protection, ensure the system operates safely at all times.
Smooth and Reliable Operation:
- The motor wire rope lifting drive system offers smooth and reliable vehicle movement, minimizing noise and wear.
User-Friendly Control:
- The PLC computer control system is easy to operate, offering seamless vehicle access with options for key and IC card operation.
Durable Construction:
- Constructed from high-quality steel with advanced metal spraying anticorrosive technology, the garage system offers superior durability with anticorrosive performance lasting over 30 years.
Design Parameters:
- Model: 3-8 Levels Bi-Directional Stereo Garage
- Car Size (L × W × H): 5300mm × 1900mm × 2050/1550mm
- Capacity Weight: ≤2350kg
- Drive Mode: Motor wire rope
- Elevation Power: 2.2/3.7kW
- Horizontal Shift Power: 0.2kW
- Power Supply: Three-phase, Five-wire 380V/50Hz
- Elevation Speed: 4.2/6.5m/min
- Horizontal Shift Speed: 8m/min
- Control System: PLC Logic Automatic Control
- Operation Method: Key, IC card operation
Safety Devices:
- Crashproof Device
- Emergency Stop Device
- Upper and Lower Protection Devices
- Current Overload Protection
- Move Over Limit Protection
- Optoelectronic Detection Device
- Up and Down Positioning Switch
- Wheel Lever for Entry
- Power Failure Braking Device
- Transverse Shift Positioning Switch
- Safety Interlocking Devices
- Chain Cover
- Ultra-Long Vehicle Detection
Product Highlights:
- Efficient Multi-Level Parking: The multi-tiered design maximizes parking capacity in limited spaces, ideal for high-density urban environments.
- Advanced Safety Features: Equipped with comprehensive safety systems, including vehicle detection and emergency stop devices, ensuring secure operation.
- Durable and Long-Lasting: Constructed with high-quality materials and advanced anti-corrosion technology, the system is built to last over 30 years with minimal maintenance.
- Smooth Operation: The motor wire rope lifting system ensures smooth and reliable vehicle movements, minimizing noise and mechanical stress.
- User-Centric Design: The PLC control system provides an easy-to-use interface for vehicle access, with options for key and IC card operation.
Product Specifications:
Model | 3-8 Levles Bi-Directional Stereo Garage | |
Car Size(L×W×H) | 5300mm×1900mm×2050/1550mm | |
Capacity Weight | ≤2350kg | |
Drive Mode | Motor wire rope | |
Electric Motor | Elevation:2.2/3.7kW Horizontal:0.2 kW | |
Power Supply | Three-phases five-wires 380V/50HZ | |
Speed | Elevation:4.2/6.5m/min horizontal shift:8m/min | |
Control | PLC logic automatic control | |
Operation | Key,IC card operation | |
Safety Devices | oWarning devices in operation | oCrashproof device |
oEmergency stop device | oUpper and lower protection devices | |
oCurrent overload protection | oMove over limit protection device | |
oOptoelectronic detection device | oUp and down positioning switch | |
oWheel lever | oPower failure braking device | |
oTransverse shift positioning switch | oSafetyinterlocking devices | |
oChain cover | oUitra long test | |

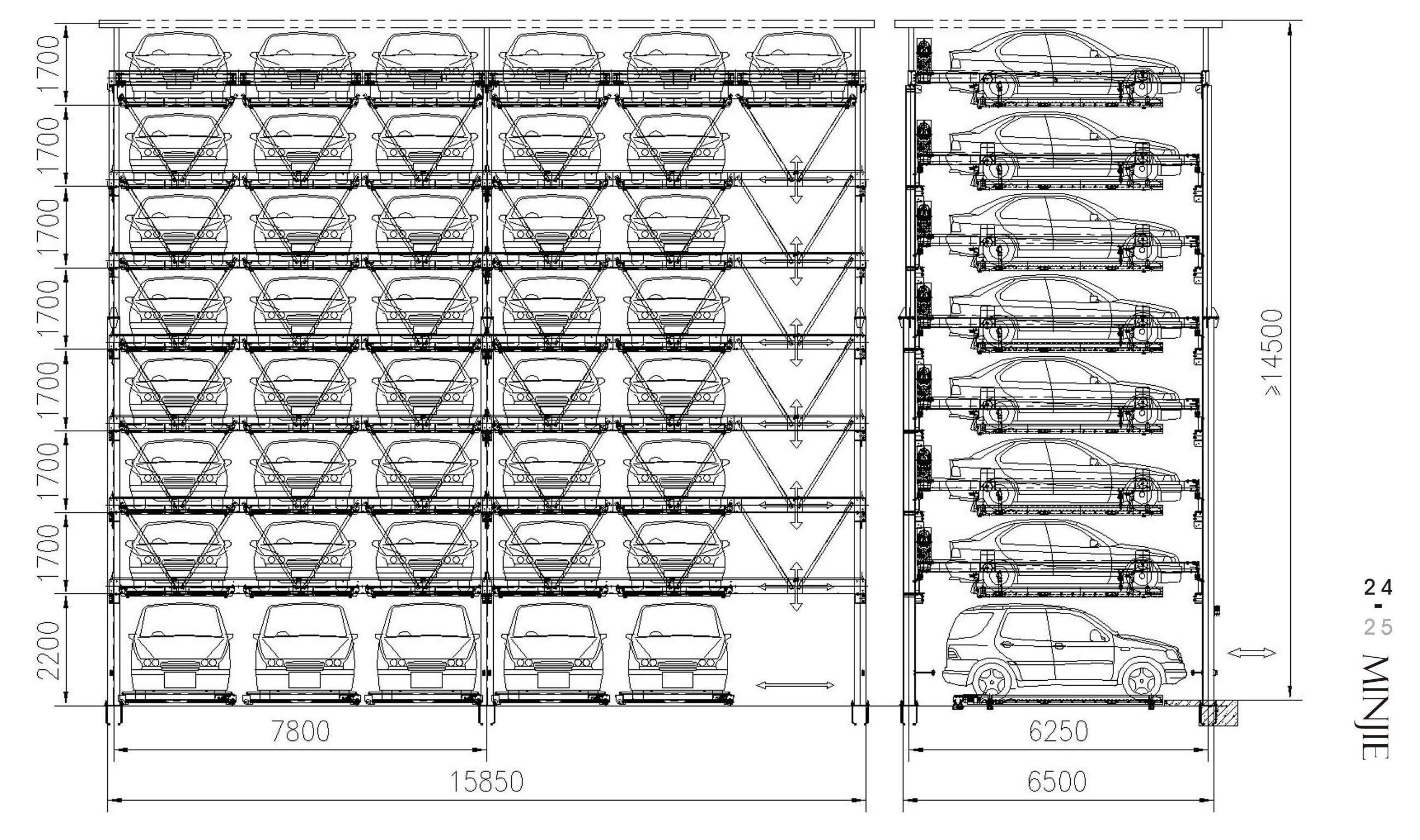

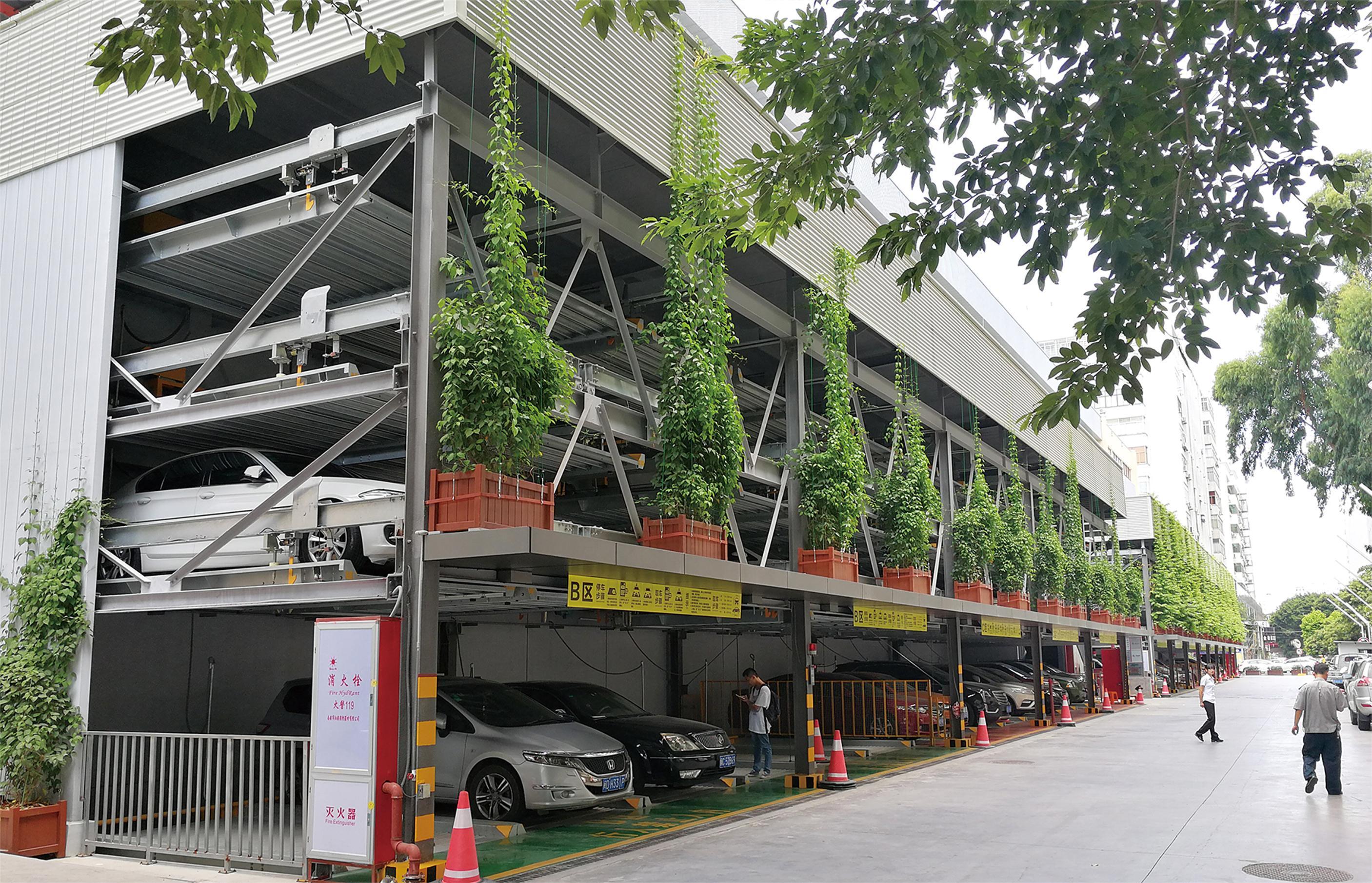

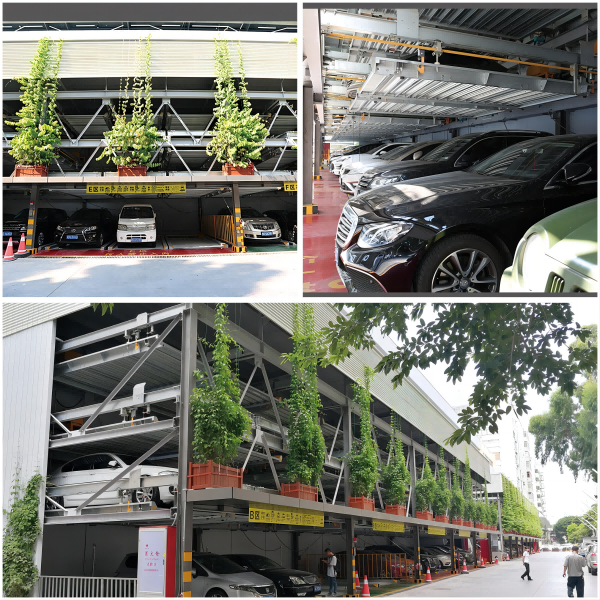

Product Images:
