Working Principles:

The Basic Type 2 Levels Mechanical Lifting Stereo Garage operates on a simple yet effective mechanism:

• Two-Level Configuration: The system features an upper and lower parking space.
• Parking Process: The vehicle enters the upper parking space, which then rises to allow another vehicle to park in the lower space.
• Vehicle Retrieval: When retrieving a vehicle, the lower parking space vehicle exits first. The upper parking space then descends to ground level, allowing the upper vehicle to exit the garage.

This efficient design effectively doubles the number of parking spaces available on the same footprint.

Key Features and Benefits:

1. Space Optimization:

   • By utilizing vertical space, this system effectively doubles the number of parking spaces on the same ground area, maximizing parking capacity.

2. Smooth and Stable Operation:

   • The system is powered by a motor chain drive that ensures smooth and stable lifting and lowering of vehicles, with minimal noise.

3. User-Friendly Design:

   • The system is designed for easy operation using either a key or IC card, making vehicle access and retrieval quick and hassle-free.

4. Advanced Safety Features:

   • Equipped with a comprehensive set of safety devices, including crashproof and emergency stop mechanisms, the system ensures safe operation for both vehicles and users.

5. Low Maintenance:

   • The simple structure of the garage, combined with high-quality components, ensures reliable performance with minimal maintenance needs.

6. Reliable Control System:

   • The PLC logic automatic control system offers reliable and precise operation, enhancing the overall efficiency of the garage.

Design Parameters:

• Model: Basic Type 2 Levels Mechanical Lifting Stereo Garage
• Car Size (L × W × H): 5000mm × 1850mm × 1550mm
• Capacity Weight: ≤2300kg
• Drive Mode: Motor chain drive
• Elevation Power: 2.2kW
• Power Supply: Three-phase, Five-wire 380V/50Hz
• Elevation Speed: 4.2m/min
• Control System: PLC Logic Automatic Control
• Operation Method: Key, IC card operation

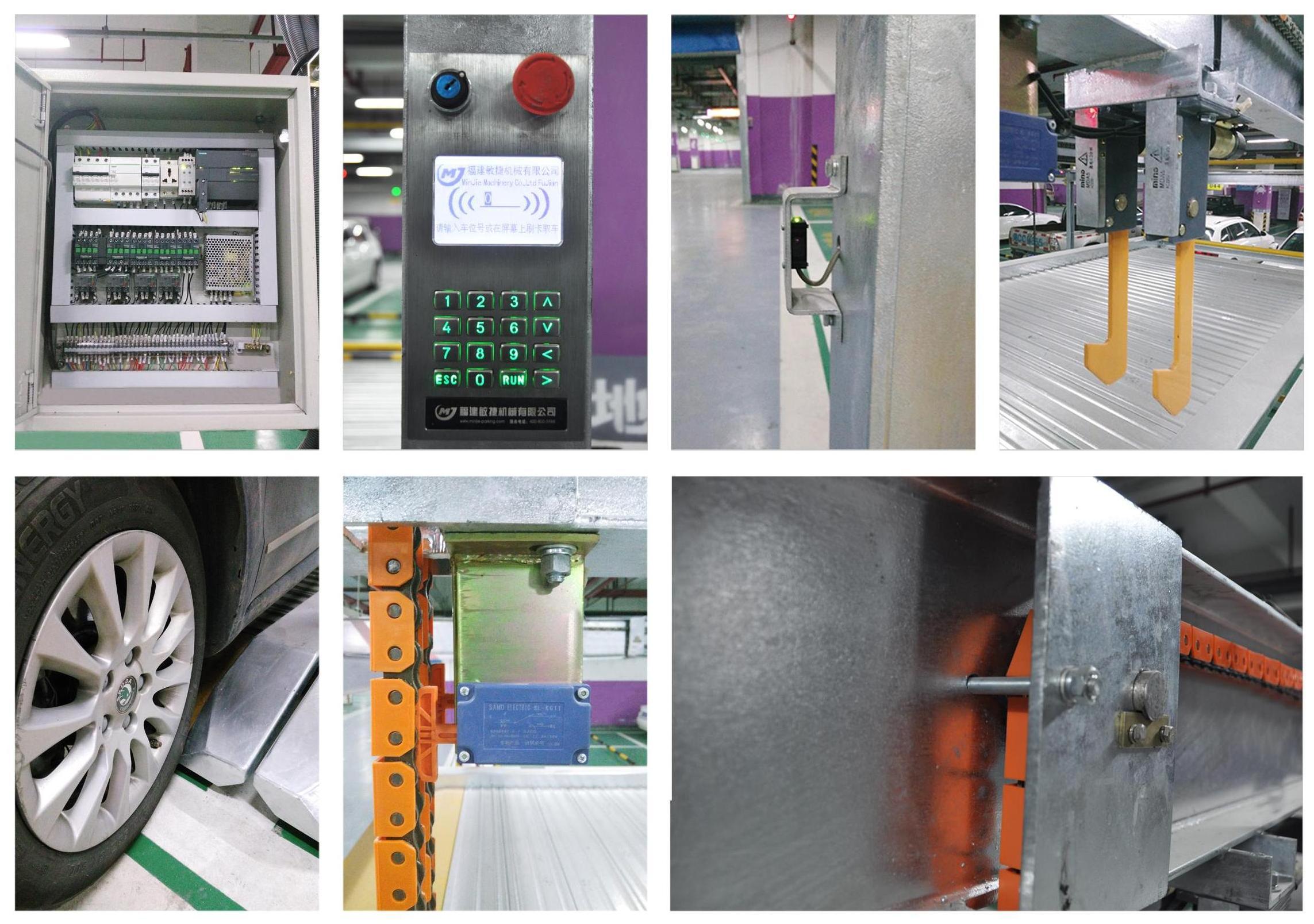

Safety Devices:

• Warning Devices in Operation
• Crashproof Device
• Emergency Stop Device
• Upper and Lower Protection Devices
• Current Overload Protection
• Optoelectronic Detection Device for Entry
• Up and Down Positioning Switch
• Power Failure Braking Device
• Wheel Lever
• Safety Interlocking Device
• Chain Cover
• Ultra-Long Vehicle Detection

Product Highlights:

• Maximized Parking Capacity: This system effectively doubles parking spaces by utilizing vertical space, making it an ideal solution for locations with limited ground area.
• Easy Operation: Simple and intuitive operation using a key or IC card ensures that users can easily park and retrieve their vehicles without complications.
• Safety First: The system is equipped with a comprehensive array of safety features, ensuring that vehicles and users are always protected during operation.
• Low Noise and Smooth Operation: The motor chain drive provides a quiet and stable operation, enhancing the overall user experience.
• Durable and Reliable: Built with high-quality materials and a robust design, this garage system offers reliable performance with low maintenance needs.

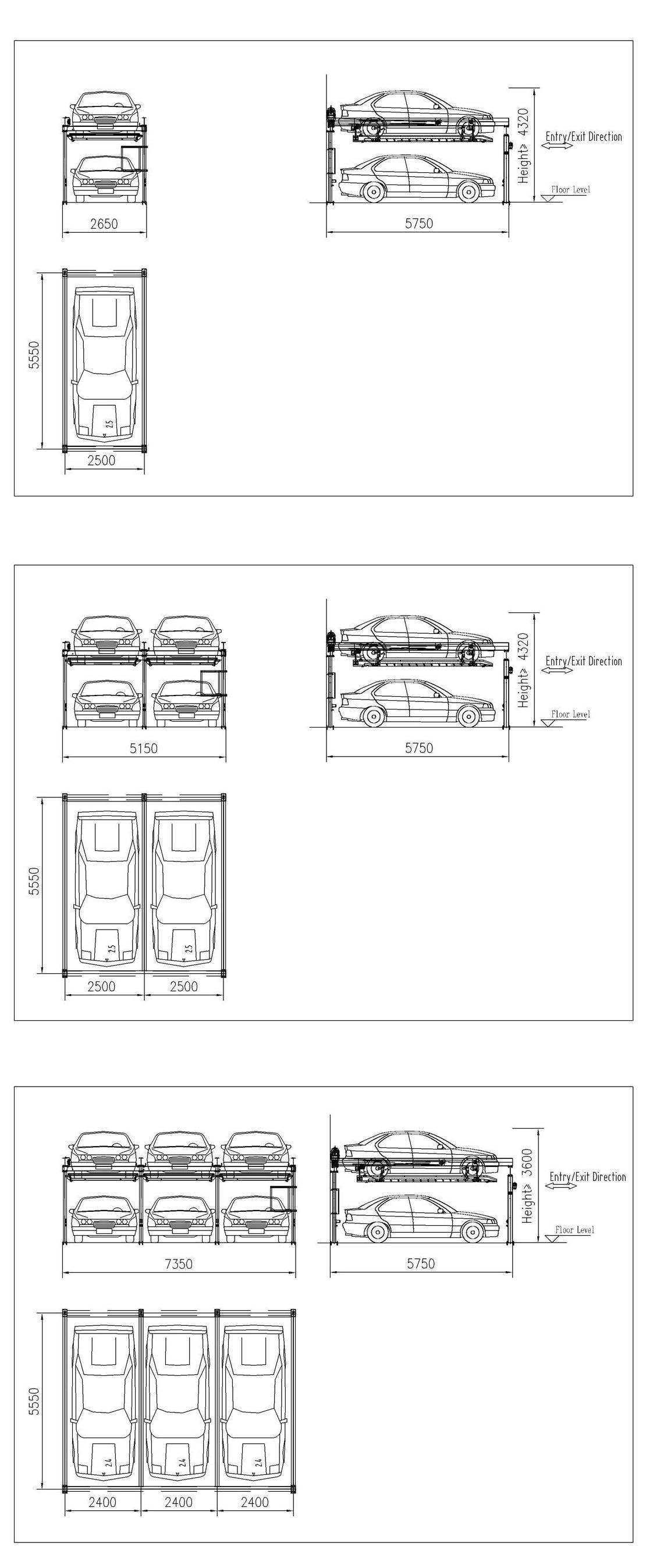

Product Specifications:

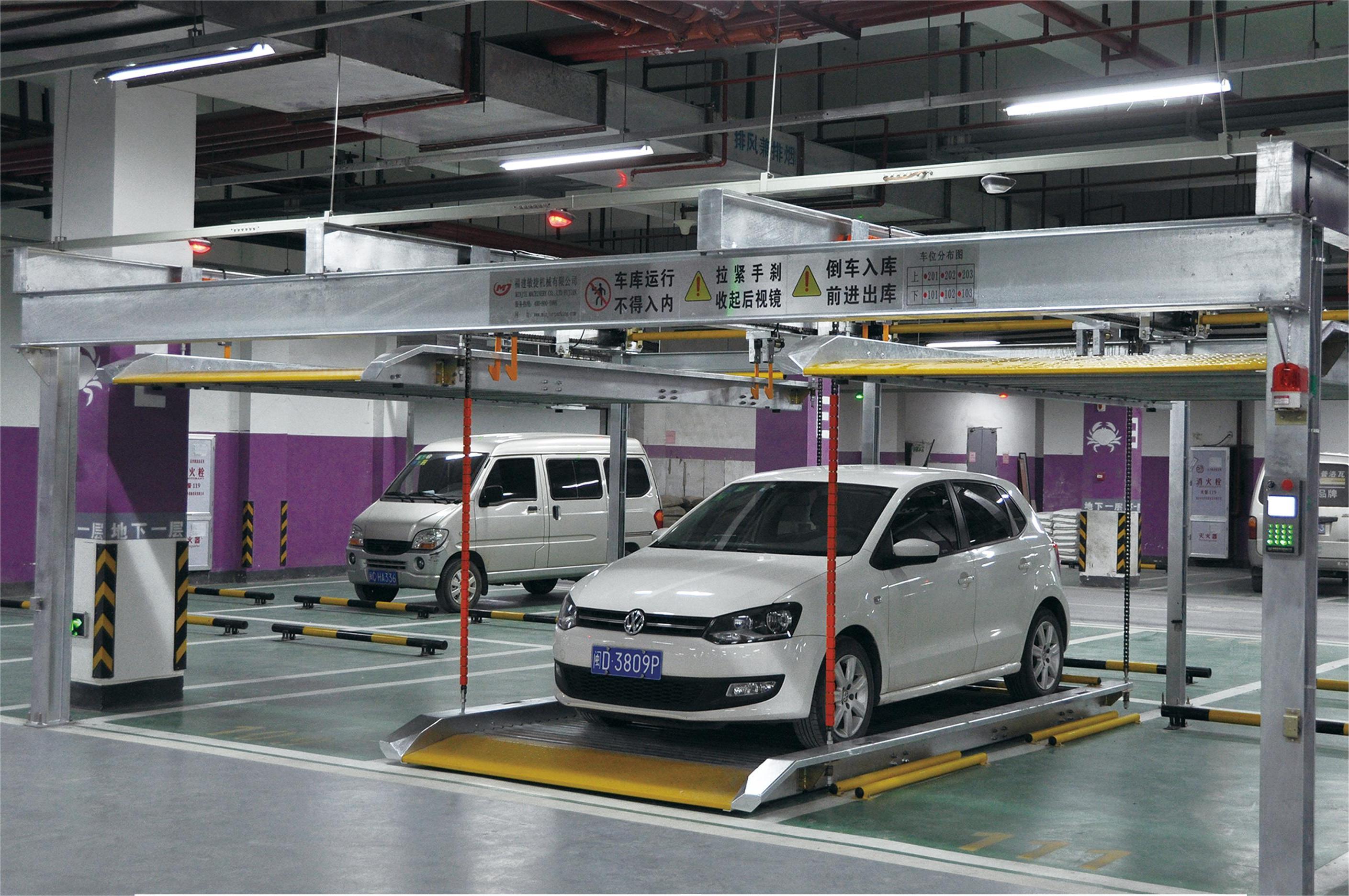

Product Images:

Company Information:

Fujian Minjie Machinery Co., Ltd. is a leading provider of innovative parking solutions. With a strong focus on quality, safety, and customer satisfaction, Fujian Minjie Machinery has established itself as a trusted name in the industry. Our products are designed to meet the needs of modern urban environments, offering reliable, efficient, and space-saving parking solutions.
