The Large Platform Plane Shuttle Stereo Garage is a fully automatic, high-efficiency parking system designed to optimize space usage in urban environments. This system integrates advanced technology with a conveyor, main elevator, and access hall to ensure seamless and rapid vehicle storage and retrieval. Upon entering the system, the vehicle is guided into position via an induction device, with both visual and audio cues aiding the driver. The vehicle is then automatically moved into the parking space by the conveyor and main elevator, ensuring a smooth and secure process.

Product Highlights

• High Efficiency: This system significantly increases vehicle storage and retrieval efficiency, taking only 60-120 seconds to access a single vehicle. Continuous operation averages under 90 seconds, making it ideal for busy environments.
• Space-Saving Design: The system is designed to occupy minimal space while providing maximum storage capacity, supporting 2 to 12 stories in both underground and above-ground configurations.
• Comprehensive Safety Measures: Equipped with numerous safety features such as emergency stop, crashproof devices, overload protection, and anti-clamping doors, this garage ensures both vehicle and user safety.
• User-Friendly Operation: The system is fully automated, with no need for the driver to reverse or turn the vehicle. It also features an enclosed design to protect the vehicle from external elements, ensuring cleanliness and safety.
• Cost-Effective Maintenance: With fully automated operation and low maintenance requirements, the garage offers a cost-effective solution for large-scale parking needs.

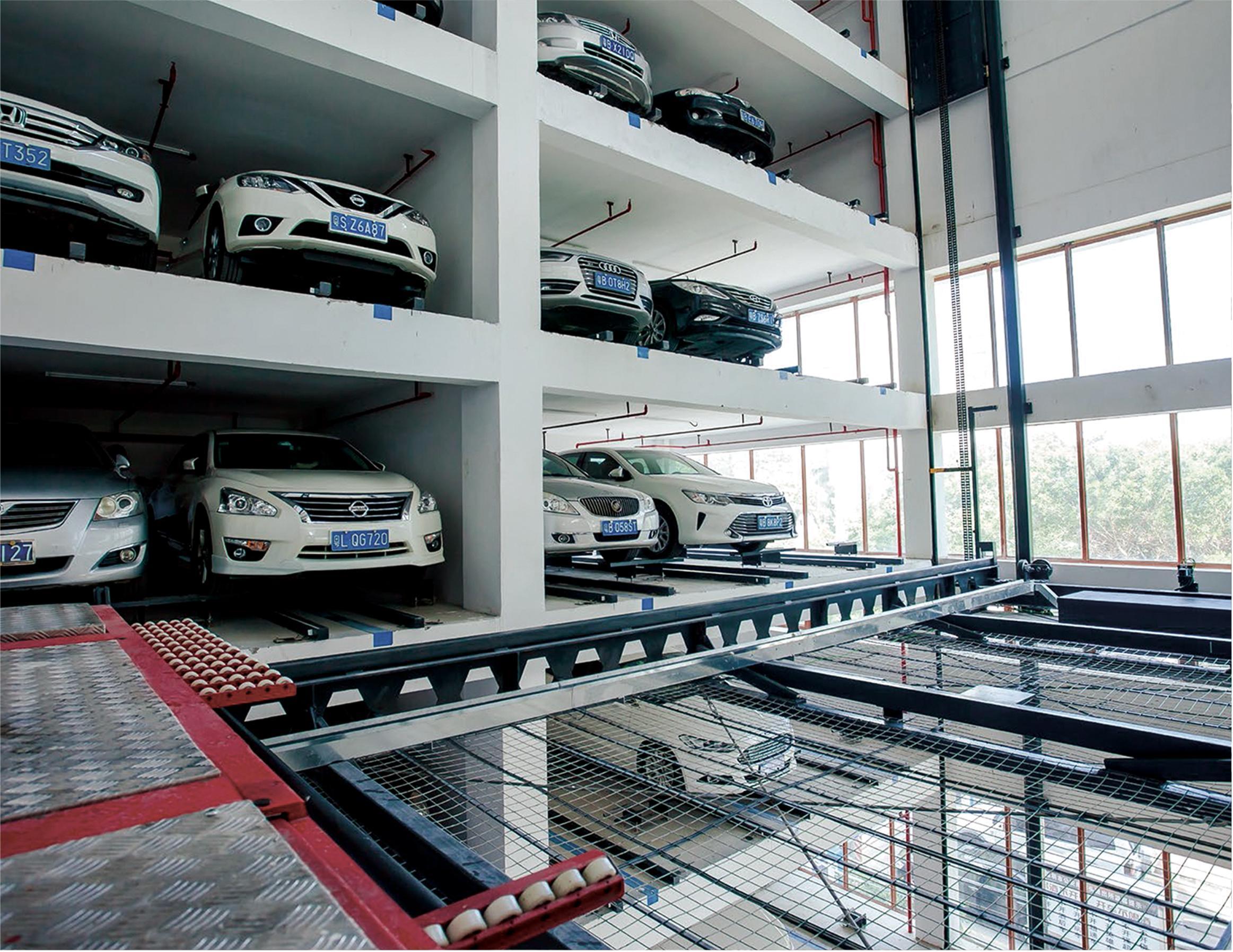

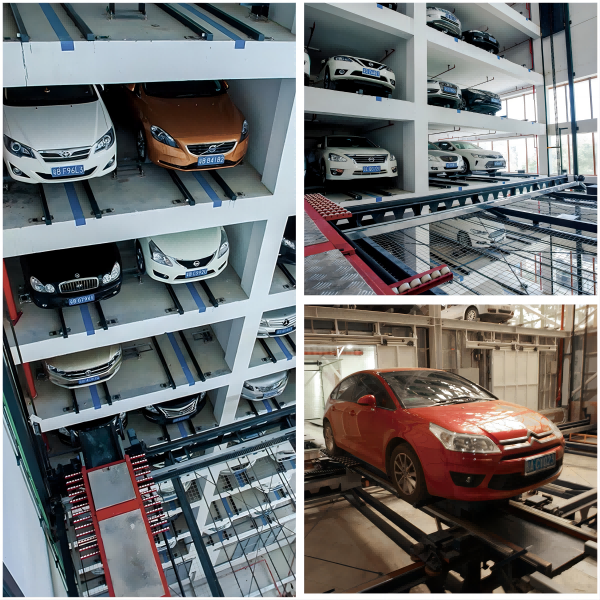

Product Details

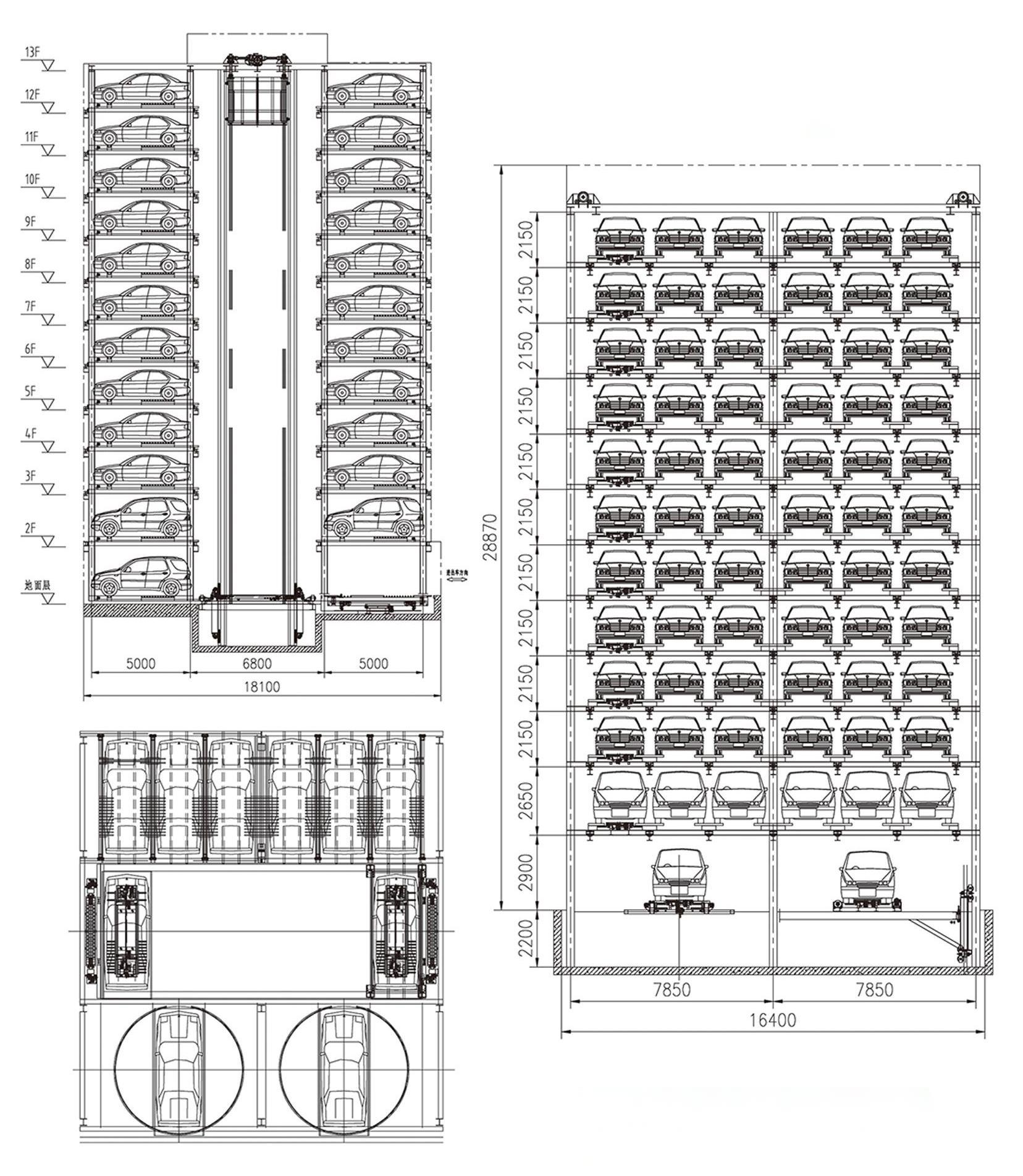

Product Specifications
